Power Banks
Bluetooth devices
Medical Instruments
Home surveillance
Robotic vacuum cleaner
Electric Bike
E-scooter
Light electric vehicles
E-Motorcycle
Telecom application
UPS application
Marine battery
Household energy storage

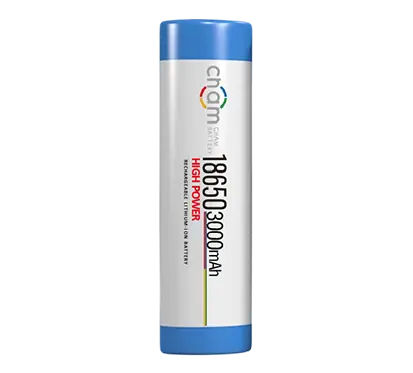

Capacity from 2200mAh to 3500mAh
UL, CB, PSE, IEC, BIS, BSMI, CQC certified
Long cycle life over 1000 times
Density reaches 251 Wh/kg

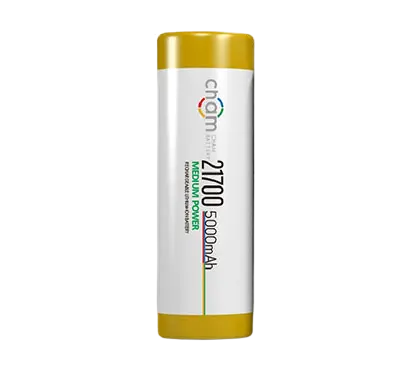

Trendy updated choice for Ebikes
Forthcoming 21700 6.0Ah Battery
Longer lifespan up to 3000 times
LFMP and NCM material for choose
High consistency with record high good feedback
Energy density ~180Wh/kg in safe LFP material
Internal resistance<1.8mΩ
-20℃ discharge>70%
5000+ cycles
Capable of maximum 40A continuous discharge
Up to 8A charging
Excellent performance in extrem conditions
Ultra high rate and ultra strong heat dissipation
Semi-solid system to ensure intrinsic safety
Cell energy density>300Wh/kg
A cylindrical cell is made of anodes, separators, and cathodes that are winding in a cylinder-shaped case. The anode electrode is made of copper foil with graphite, and the cathode is a ternary materials coating on Al foil. To avoid contamination between the two parts, the anodes and cathodes are usually processed in different rooms. When the electrodes have been prepared, they would be assembled in winding machine where separator is layered between the anode and the cathode to form the internal structure of the cell.
The production processes of lifepo4 cylindrical cells mainly include mixing, coating, drying, calendering, slitting, winding, welding, electrolyte injection, sealing and testing. Each process needs to be controlled in specific temperature and humidity. For the reliability of lithium phosphate battery cells, CHAM, a professional lithium battery manufacturer, conducts 100% X-Ray inspection to ensure internal winding alignment &safe battery structure. In lfp cylindrical cells manufacturing process, highly automated equipment and advanced technology are critical, will have a positive impact on production costs, reducing the cost of on both raw material and final battery cell.
Lithium cylindrical cells, with the cylindrical shape and construction, were one of the first mass-produced battery in the world and are dominant in some applications. Prismatic cell batteries, on the other hand, are popular because of their long life span, thin shape, and efficient use of space.
Lifepo4 cylindrical batteries are convenient because of their variety of combinations to needed power and battery space. For LFP Prismatic Cells, they are safer than cylindrical lithium-ion batteries by the nature of LPE material.
